Input & Output
- Input voltage:230V AC
- Input frequency:50Hz
- Output voltage:230V AC
- Max. output power:7.3kW
- Max. output current:32A
- Charging interface type:IEC 62196-2, Type II
Protection
- Over voltage protection:Yes
- Under voltage protection:Yes
- Over load protection:Yes
- Short circuit protection:Yes
- Earth leakage protection:Yes
- Ground protection:Yes
- Over-temp protection:Yes

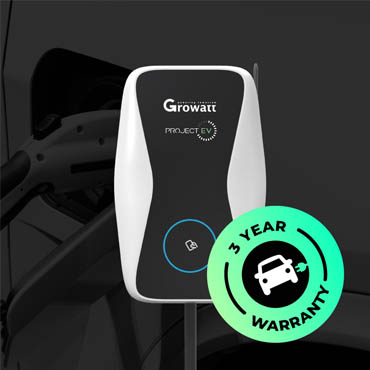

EVA-07S RFID Secure
(Single phase - 7.3kW EV Charger)
COMPACT DESIGN
Attractive appearance, A4
print paper size, simple
but elegant.
FULL PROTECTION
Full electrical protection,
over/under temperature
protection, etc.
STABLE
IP65 protection grade, capable
for harsh environment,
salt-mist condition
INTELLIGENT
Intelligent power
adjustment, emergency
stop, Wifi/APP/ethernet
monitoring.
EUROPEAN STANDARD
OCCP v1.6 standard open
communication protocol, IEC
62196 type II connector.
EASY TO INSTALL
Wall-mounting or
pole-mounting optional.
RFID
Allows secure access for multiple monitored users
Designed to meet your specific needs...
| Standard Price (LAN/Wall Mounting) | Included |
| Charging Socket | Included |
| Monitoring/WiFi | Included |
| RCD/TYPE A | Included |
| RFID | Included |
| RFID card | Included |
| RFID card (additional cards) | Optional |
| LCD screen | Optional |
| Monitoring/4G | Optional |
| Mounting/Pole | Optional |
| Sensor + automatic power regulation | Optional |
| Car Detection | Optional |
Environment
| IP grade | IP65 |
| Operation temperature | -30°C ~ +55°C |
| Operation Humidity | 5% ~ 95% without condensation |
| Operation attitude | <2000m |
| Cooling methods | Natural air cooling |
| Standby power consumption | <8W |
Mechanical
| Dimensions (L*W*H) | 353*218*129mm |
| Weight | Less Than 7KG. |
Mounting Accessories
| Wall-mounting bracket | * Pole dimension& weight:200mm |
| Ground-mounting pole | *1200mm*180mm(W*H*D), 8.5kg. |
