Input & Output
- Input voltage:AC400V
- Frequency:50HZ±1
- DC plug type:CCS Type II,double plugs
- Output voltage range:200-850V DC
- Output current:Single connector MAX:200A
- Voltage accuracy:≤±1%
- Current accuracy:≥30A:≤±1%, ＜30A:≤±0.3A
- Voltage-regulating accuracy:≤±1%
- Current-regulating accuracy:≤±1%
- Ripple coefficient:RMS: ≤±0.5; Peak: ≤±1
- Metering accuracy:1%
- Efficiency:≥94%
Protection
- Over voltage protection:Yes
- Under voltage protection:Yes
- Over current protection:Yes
- Leakage current protection:Yes
- Overtemperature protection:Yes
- Undertemperature protection:Yes
- Lightning protection:Yes

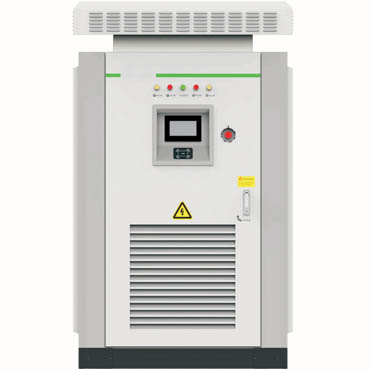

EVD-150D DC
Charging Station
CONVENIENT
7’ touch screen LCD for
parameter browsing and
setting
RELIABLE
Ip54 protection level,
ground-mounting for outdoor
installation
FLEXIBLE
QR code and RFID payment
support
CAPABLE
Dual CCS type 2plug,more
efficient charging
Communication & Interface
| Display | 7 inch touch screen |
| Ethernet/WIFI/4G | Yes/Opt/Opt |
| Payment support | QR code scanning/RFID |
| Indicator | Yes |
| Emergency stop | Yes |
Working environment
| IP degree | IP 54 |
| Working temperature | -20°C ~ +65°C |
| Humidity | 5% ~ 95% without condensation |
| Altitude | <2000m |
| Cooling | Forced air cooling |
| Standby power | ＜30W |
| Noise | ≤65db |
Mechanical
| Dimension（L*W*H） | 1260*950*2110mm |
| Weight | 800KG |
