Input & Output
- Input voltage:400V DC
- Input frequency:50Hz
- Output voltage:400V DC
- Max. output power:44KW
- Max. output current:63A
- Charging Interface:IEC 62196-2, Type ll
- Connection:Gun
- Number of gun/socket:1
- Cable length:3m
Protection
- Over voltage protection:Yes
- Under voltage protection:Yes
- Over load protection:Yes
- Short circuit protection:Yes
- Earth leakage protection:Yes
- Ground protection:Yes
- Over-temp protection:Yes
- Lightning protection:Yes

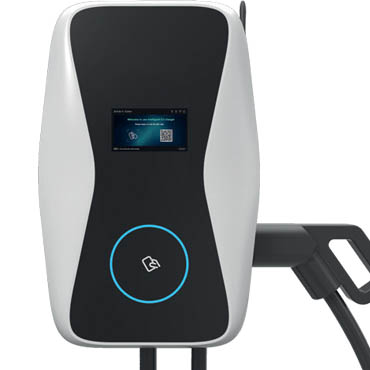

EVA-44S DC Charging Station
(Three phase 44 kW EV Charger)
COMPACT DESIGN
Attractive appearance, 4.3‘’ LCD screen, A4 print paper size, simple but elegant.
FULL PROTECTION
Full electrical protection, over/under temperature protection, etc.
STABLE
IP65 protection grade, capable for harsh environment, salt-mist condition
EUROPEAN STANDARD
OCCP v1.6 standard open communication protocol, IEC62196-2 type 2 connector.
INTELLIGENT
Emergency stop, 4G/ethernet/Wifi/APP monitoring, RFID/QR/Bluetooth payment support. Gun-return check, gun-out check support; Growatt central monitoring server or open to third party monitoring server.
Floor-mounted option only
Designed to meet your specific needs...
| Standard Price (LAN/Wall Mounting) | Included |
| Charging Socket | Included |
| Monitoring/WiFi | Included |
| RCD/TYPE A | Included |
| RFID | Included |
| RFID card | Included |
| RFID card (additional cards) | Optional |
| LCD screen | Optional |
| Charging Gun (3m) | Optional |
| Monitoring/4G | Optional |
| Mounting/Pole | Optional |
| Sensor + automatic power regulation | Optional |
| Car Detection | Optional |
Environment
| IP grade | IP65 |
| Operation temperature | -30°C ~ +55°C |
| Operation Humidity | 5% ~ 95% without condensation |
| Operation attitude | <2000m |
| Cooling methods | Natural air cooling |
| Standby power consumption | <8W |
Mechanical
| Dimension（L*W*H） | 420*270*135mm |
| Weight | <16KG |
Mounting Accessories
| Wall-mounting bracket⁄ | *Pole dimension& weight: |
| *Pole dimension& weight: | 200mm*1200mm*180mm(W*H*D),8.5kg |
